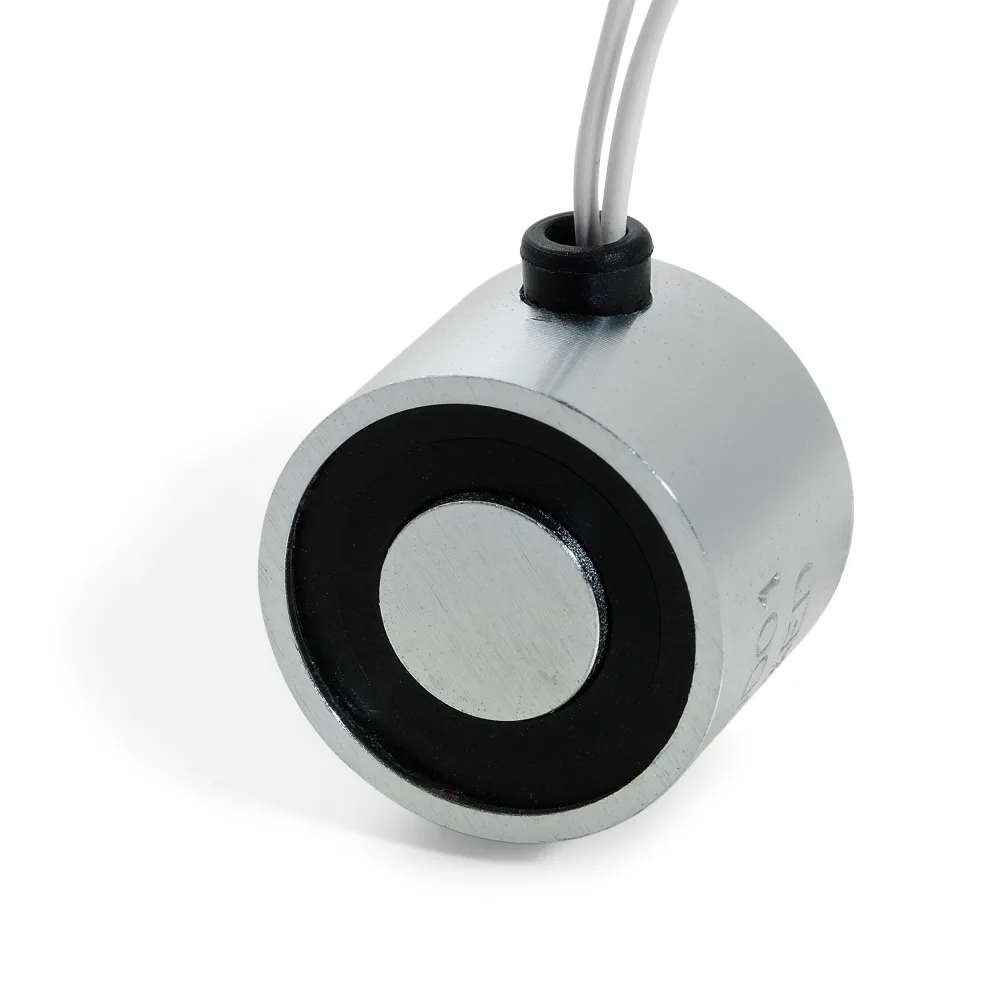

Small Electromagnet – Energise-to-hold

Type GMHX 020
  • Holding force up to 70N
  • Robust cylindrical construction
  • Connection via free leads
  • High quality permeable iron for low remanence
  • Armature plates

Description

The GMHX 020 X00 D01 is a miniature energise-to-hold magnet designed for applications requiring high holding force in a compact form. With a diameter of just 20mm, it delivers an impressive 70 N holding capacity, making it ideal for securing access flaps, hatches, machine tools, robotic handling systems, textile machinery, and other short-stroke, high-force operations. Built with robust zinc-plated materials for corrosion resistance, it offers 100% duty rating for continuous operation and operates efficiently at 24V DC, with the option of using an external rectifier for AC supply. A single tapped rear face fixing point allows for versatile mounting in any orientation. Despite its small size, weighing just 0.025 kg, the GMHX 020 combines durability, strength, and energy efficiency, providing dependable holding power in industrial and automation environments.
