Description

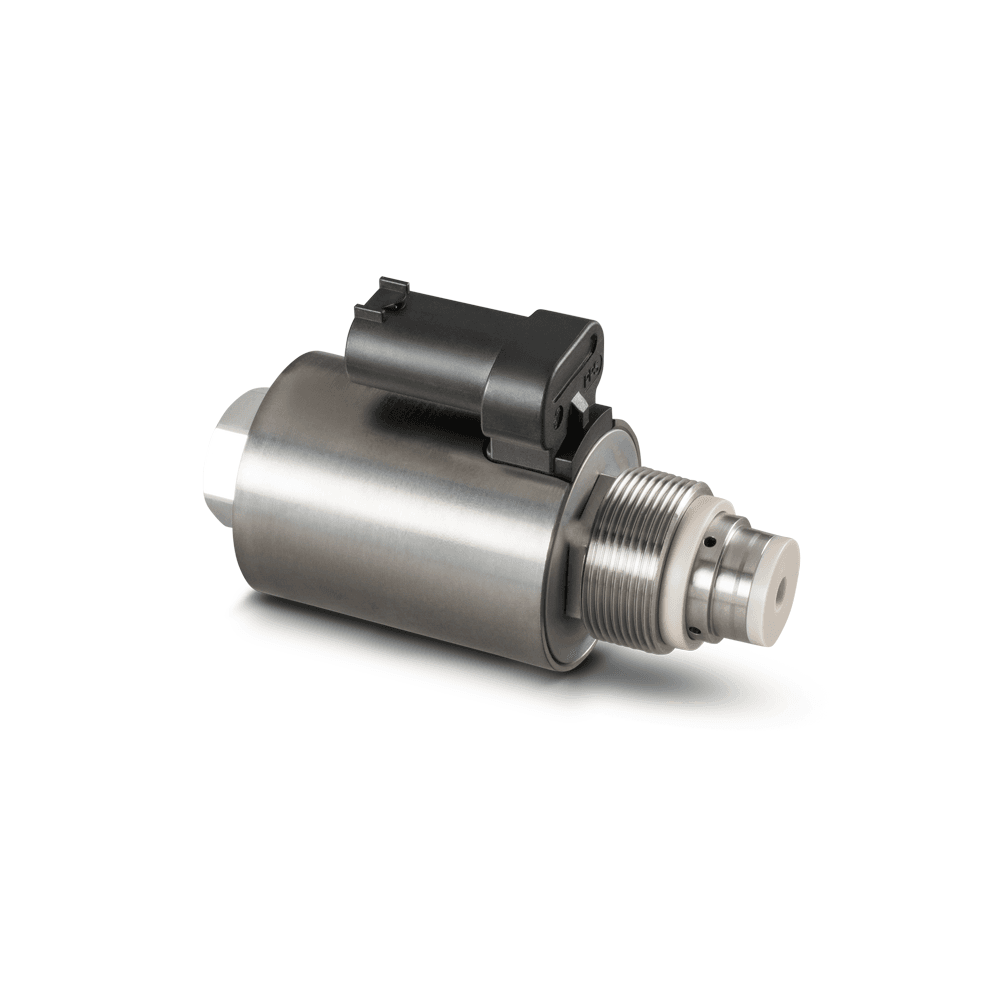

The GPCS 032 K69 V01 High Pressure Cut-Off Valve is a compact, precision-engineered solution for controlling gaseous hydrogen and neutral gases in high-pressure systems. Designed as a 2/2 normally closed valve with pilot control and unrestricted switch function, it operates reliably without counter-pressure requirements. With a rated operating pressure of 700 bar and maximum input pressure up to 1050 bar, it is ideally suited for demanding hydrogen applications and is tested according to EC79 standards. The valve offers fast reaction times under one second, exceptional service life, and minimal leakage performance. Protection to IP6K9K ensures resilience against dust and high-pressure water ingress when correctly installed. Electrical connection is via a Micro Quadlock 2-pole plug, with ATEX/IECEx and aerospace versions available for stationary applications. Combining high performance, durability, and compact size, the GPCS 032 K69 V01 is perfect for hydrogen refuelling, storage, and other safety-critical high-pressure gas control systems.
