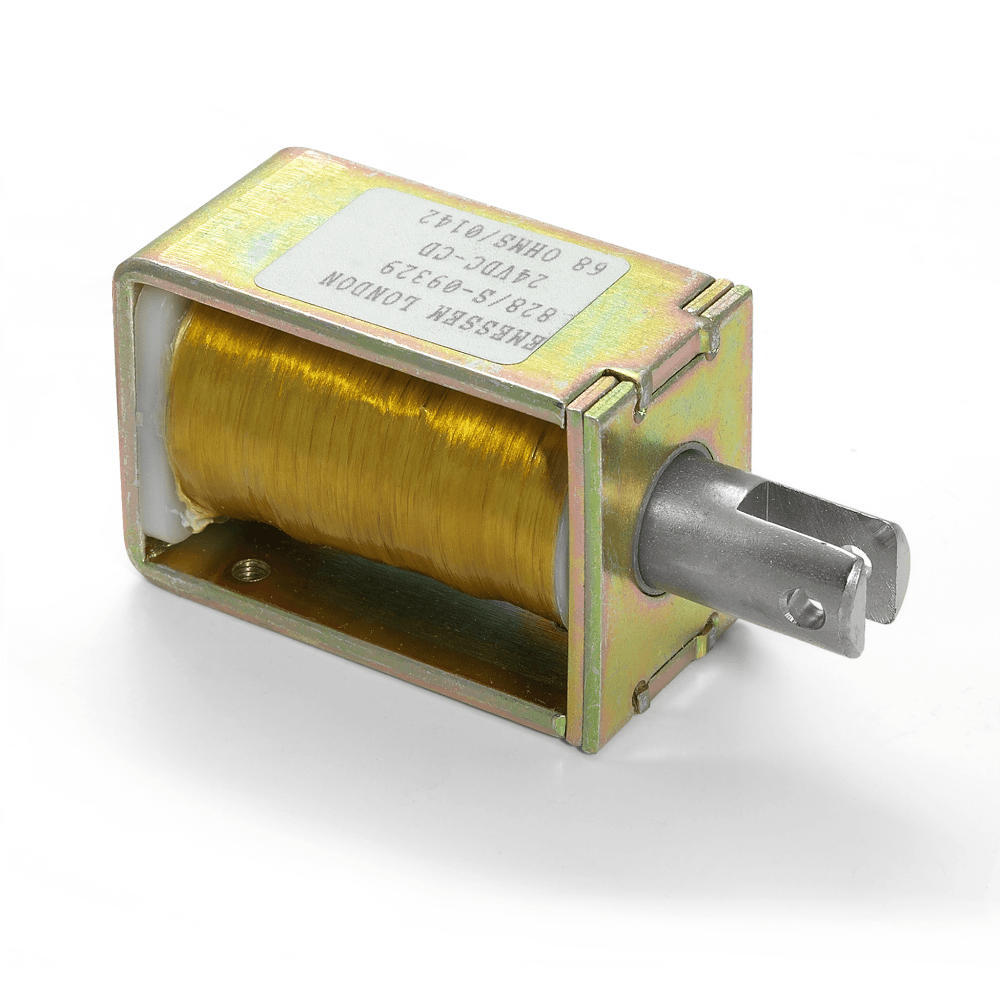

Pull Type Box Frame Linear Solenoid

Type 828
  • Stroke: up to 25mm
  • Rated force: up to 49N
  • Pull operation
  • Volume-efficient design
  • Tapped or clevis armature end
  • Spring-return option

Description

The Type 828 Linear Solenoid is a versatile, open-frame actuator designed for motion control in automation, packaging, machine tools, textile machinery, and office equipment. Engineered for pull operation, it features a long stroke design with an integral clevis end, making it ideal for applications requiring a reliable, increasing force characteristic over strokes up to 25mm.

Constructed with zinc/nickel-plated iron parts for durability, the solenoid includes Class B coil insulation, with optional rectifiers for AC supply compatibility. Available with coils rated for continuous, intermittent, or impulse duty cycles, efficient performance can be achieved across different operating conditions. The tag terminals or flying leads enable easy electrical integration, while an optional spring return allows for automatic repositioning. Designed to operate in any orientation, the Type 828 solenoid delivers proven reliability and adaptability, making it a trusted solution for precision actuation in demanding industrial applications.
