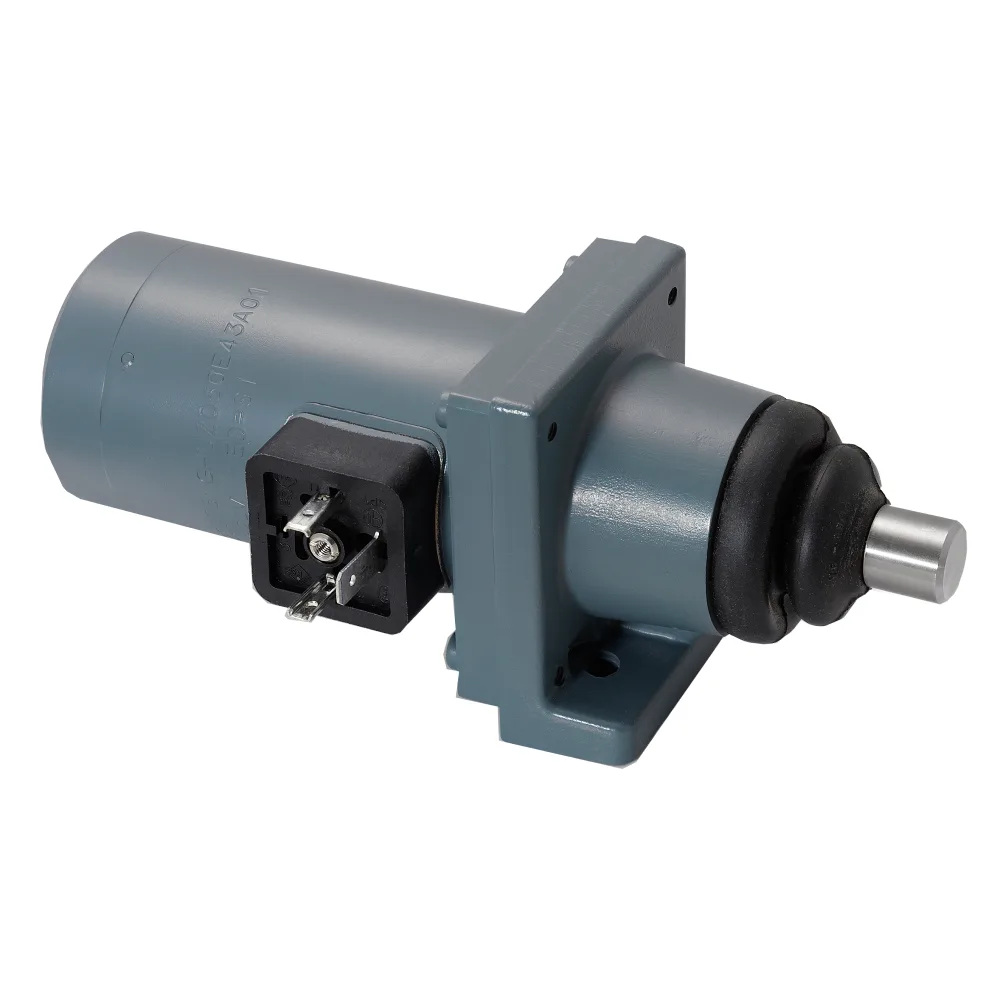

Heavy-duty Shotbolt

Type GHUZ 050
  • Stroke: 10mm
  • Rated force: up to 57N
  • Energise-to-lock and spring-to-lock versions
  • Bolt position switch
  • Long-life DU bearings
  • Stainless steel bolt
  • Protection rating: up to IP54, bellows seal

Description

The GHUZ 050 Heavy Duty Shotbolt is a robust locking solution designed for demanding industrial and safety-critical environments. Offering both energise-to-lock and spring-to-lock configurations, it incorporates an integral return spring for reliable bolt retraction or engagement. An optional bolt position switch provides status feedback, making it ideal for integration into interlock and access control systems. The lock bolt and solenoid armature operate in separate bearings, allowing the unit to withstand radial loads of up to 3000 N in the rest position without compromising performance. Class F coil insulation supports voltages up to 250 V, and the design allows operation in any mounting orientation. With IP54 protection when used with a plug connector, and IP65 or ATEX-certified versions available, the GHUZ 050 is well-suited for harsh conditions. Typical applications include securing machine guards, security doors, gates, grills, and industrial interlocking systems where durability and dependable performance are essential.
