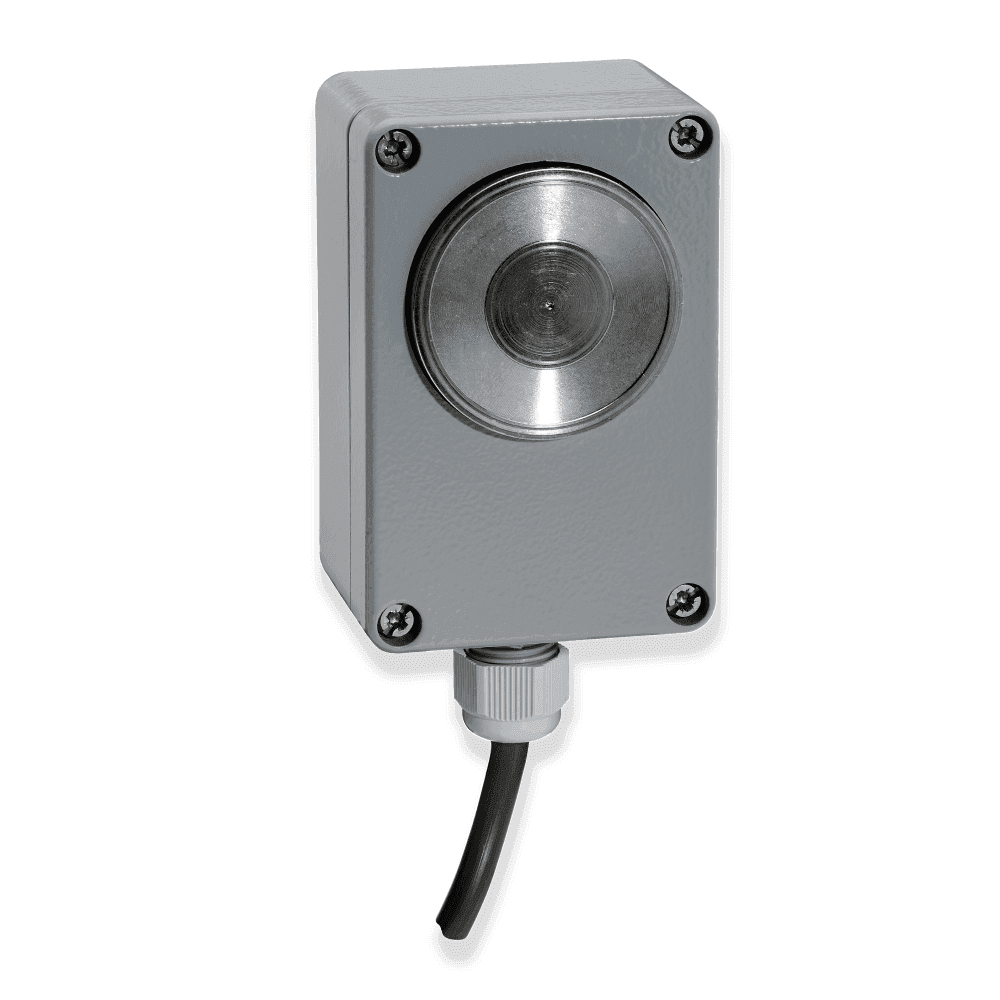

Heavy-duty Boxed Electromagnet

Type BMEH/BMER
  • Holding force: up to 640N
  • Energise-to-hold or energise-to-release
  • Fully sealed assembly
  • Monobloc IP68 pole faces
  • For marine & wet environments

Description

The Heavy Duty Boxed Electromagnet is engineered for secure holding in challenging environments, combining robust performance with exceptional durability. Available in energise-to-hold (GMHX) and energise-to-release (GMPX) versions, it delivers holding forces of up to 640 N or 500 N respectively. The unit features a fully sealed assembly with monoblock IP68 pole faces, ensuring reliable operation in marine, wet, or outdoor settings. Its die-cast aluminium enclosure, finished in grey paint, houses a high-temperature, zero-halogen cable for safe and long-term use. Compatible with DC supply or AC via an optional rectifier plug, the magnet is rated for continuous or impulse duty, depending on the version. Ideal for securing fire doors, shutters, grills, smoke vents, and access security systems, the Heavy Duty Boxed Electromagnet combines strength, weather resistance, and dependable operation for safety-critical applications.
