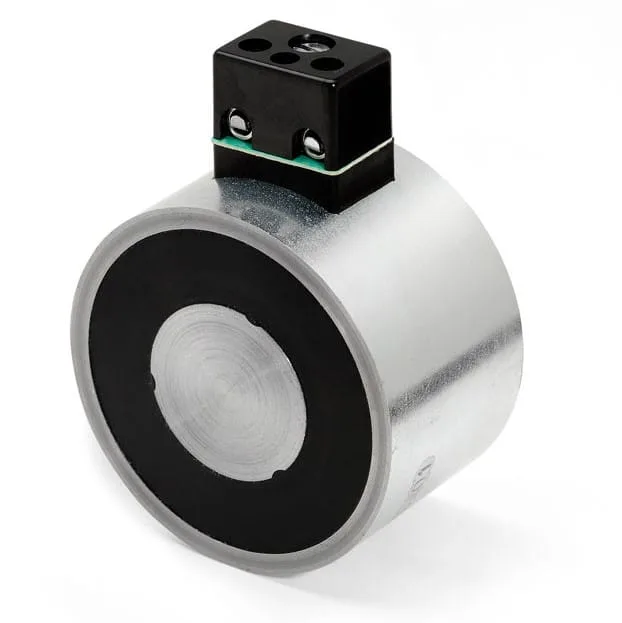

Electromagnet – Energise-to-hold

Type GMH
  • Holding force up to 3300N
  • 7 sizes
  • Robust cylindrical construction
  • Multiple options for electrical connection
  • Armatures to suit – see Type GZZ

Description

The GMH Holding Magnet is a high-performance DC electromagnet designed for secure holding in a wide range of industrial applications. Offering high magnetic holding force in a cylindrical form-factor, the GMH is ideal for robotics, fixture holding, conveyors, door holding systems, and interlocking mechanisms. Available in seven sizes from 25 mm to 100 mm diameter, the GMH features zinc-plated metallic faces for corrosion protection and a gimbal-mounted armature for optimal contact. Connection options include flexible flying leads, terminal blocks, or plug connectors, with protection ratings from IP00 to IP40 as standard depending on configuration. The coil is insulated to thermal Class F for durability under continuous operation, and is available in various voltages for easy integration into existing systems. With robust construction, reliable performance, and adaptable mounting options, the GMH is a proven solution for demanding holding applications.
