Products

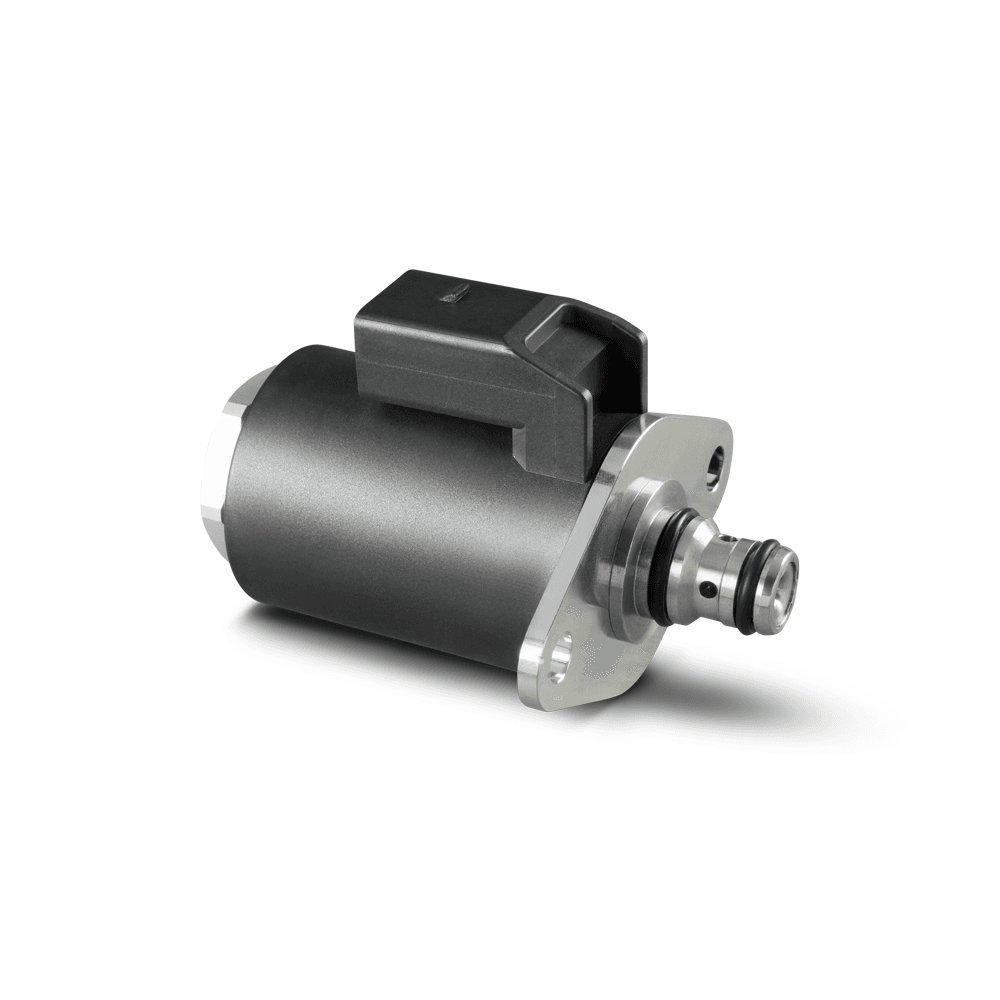

Flow Control Valve
Type GPCP 040
- Size (Ø): 40 mm
- Function: 2/2 NC proportional quantity control
- Medium: Hydrogen (H₂)
- Nominal working pressure (NWP): 0 – 21 bar
- Maximum pressure (MAWP): 25 bar
- Central fastening or flange mounting
- Type of voltage: DC, PWM
- Connector: TE MCP 2.8 mm
- Protection class: IP6K9K
- Wide proportionality between solenoid current and flow rate
- Low leakage
- High switching life time
- Various electrical plug connections
- ATEX version for stationary applications available
- EN 9100 aerospace version and other options available on request
