Description

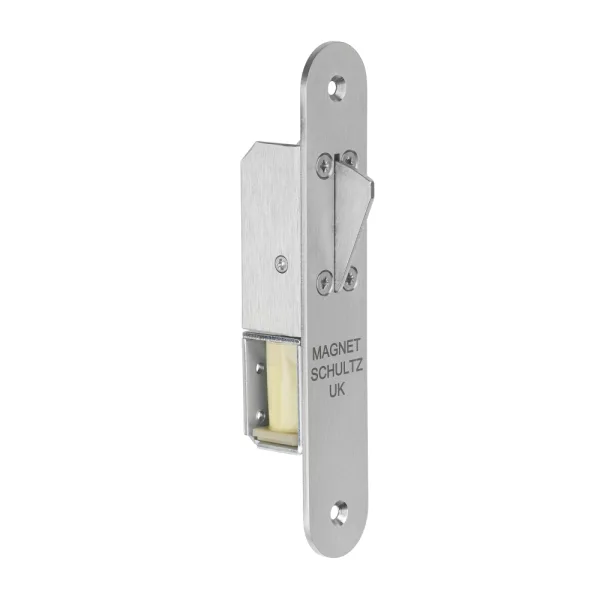

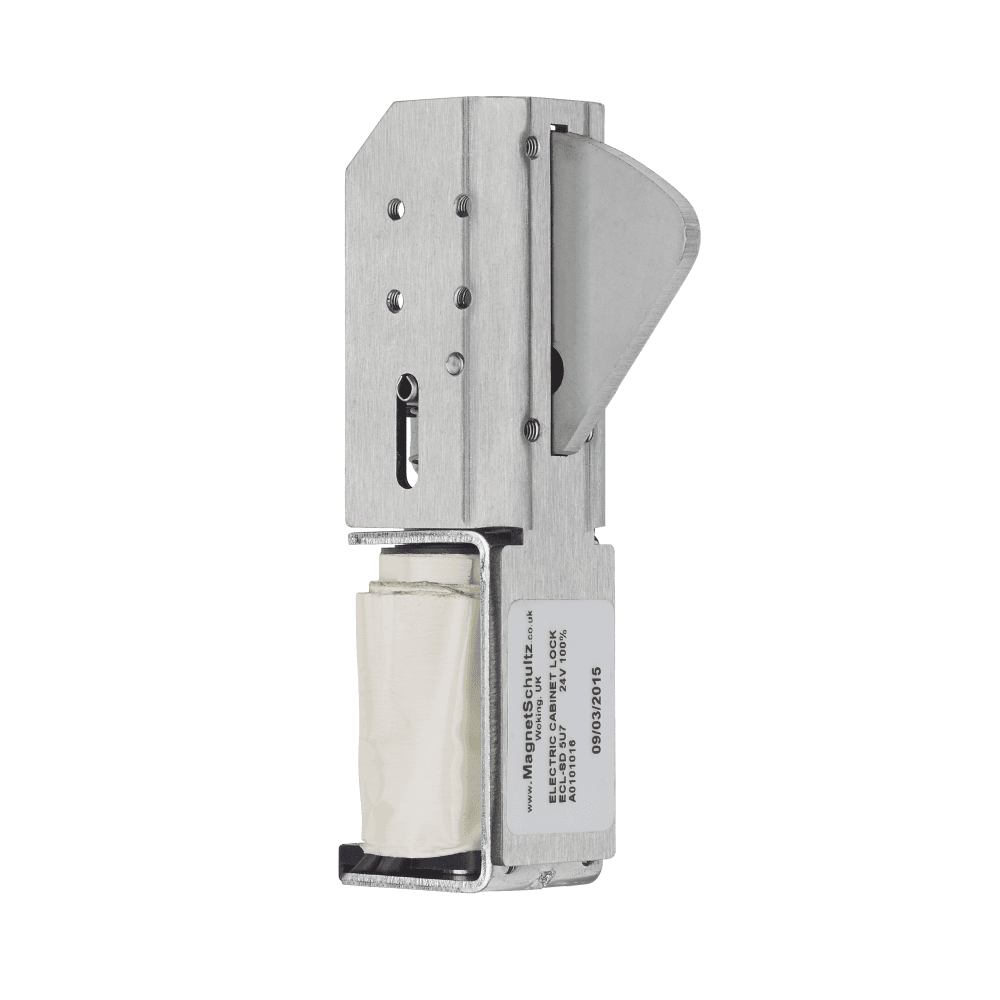

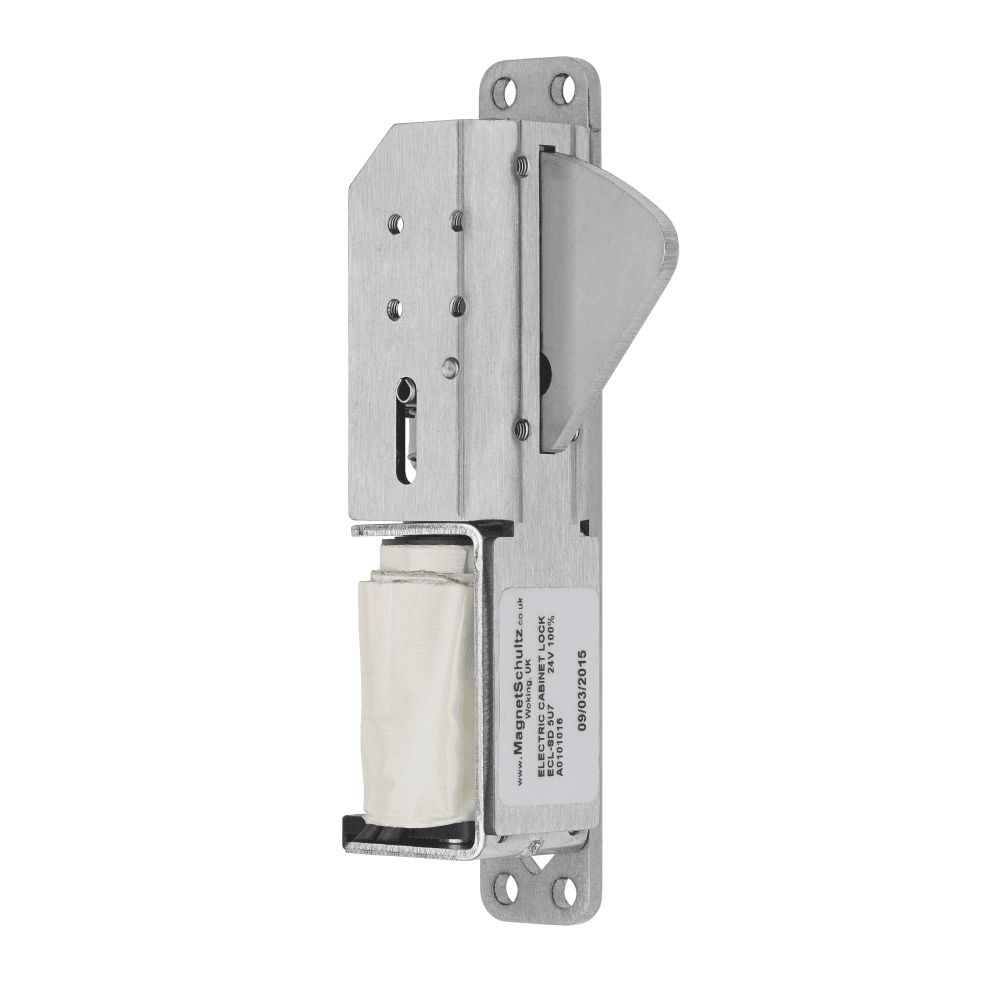

The Electric Cabinet Lock (ECL) delivers secure, reliable locking of hinged elements in cabinets, lockers, security doors, gates, and covers. Designed with a spring-to-lock mechanism and available in a deadlocked version for enhanced protection, it offers up to 18 mm stroke and can withstand side loads of up to 500 N. The stainless steel locking element and frame ensure long-term durability, while the flat locking element accommodates high side-load applications. Its right-angle design reduces the dimension along the lock axis, allowing for compact installations, and face or side mounting enables fitting in any orientation. The ECL utilises a solenoid with rated to 100% duty cycle to allow for continuous energisation, with electrical connection via flying leads for easy integration. Optional features include door-proving and limit switches, manual override, special facia plates, and custom locking blades. With robust construction and versatile configurations, the ECL is ideal for securing access in commercial and industrial environments.
